Apply Rhino Curves from an Unrolled Surface

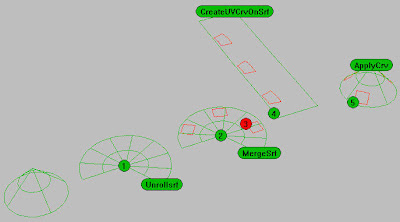

  1. Unroll the surface.
  2. If possible and where applicable MergeSrf the surfaces with Smooth =no.
  3. Put the pattern in place on the unrolled object.
  4. Use CreateUVCrvIOnSrf (V3Bonus tool, in V4 use CreateUVCrv) on the unrolled surface and the curves.
  5. ApplyCrv the rectangle and the pattern curves from step 4 to the original surface.

- Pascal Rhino Newsgroup
